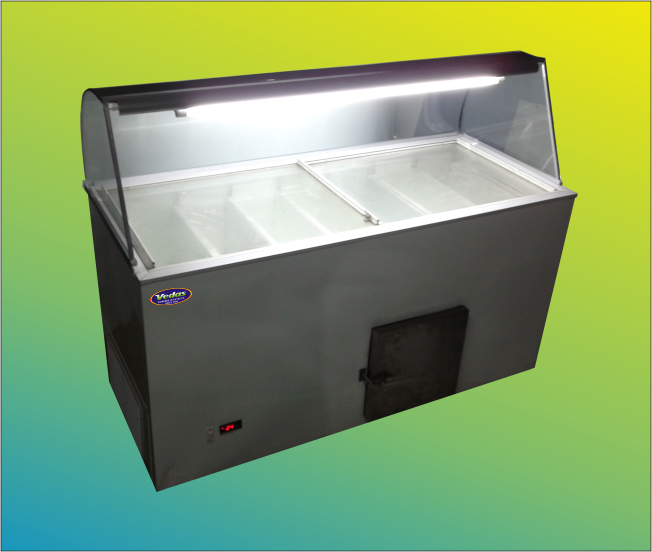

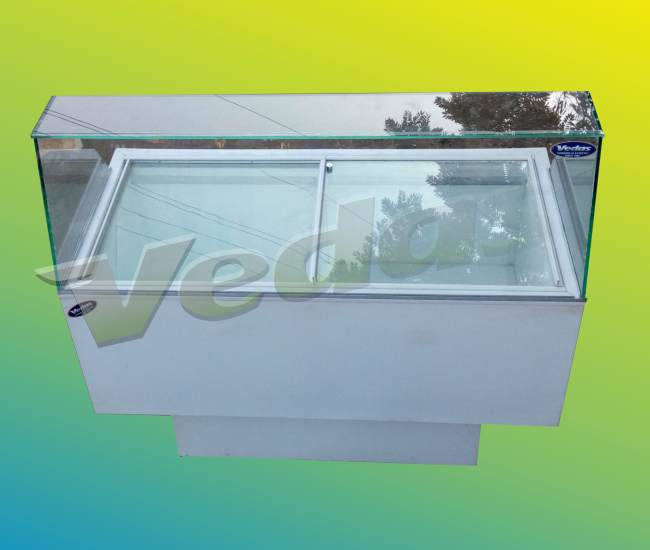

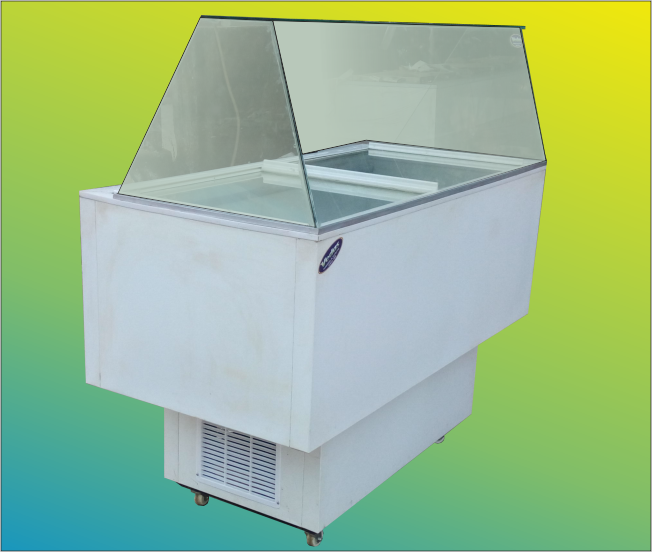

Icecream parlour

Silent Features:

  • Glycol solutions jackets are used in inner tank .This type of freezer can keep Ice-Cream from melting for 9 hours without electricity.
  • High density 31-38 Kg. / m^3 Polurethane foam ( PUF) injected with high pressure machine
  • HFC 134 / 404 ecofriendly refrigerants.
  • Avoid skin condenser due to draw back instead of that use auxiliar condenser. The condenser are designed by calculating enthalpy of system considering maximum ambient temperature
  • Branded Compressor are used but do not apply for over capacity systems . Designed is based on compressor capacity not on system
  • For glass top low Heat transfer specially treated low E glass are used
  • Heavy duty castors used
  • Temperature range -17 °C to -32 °C

Available in models

Model Vol.Lit Dimension W×L×H inc Temperature No.of Doors Consumption Units/24Hr Sliding Glass No. of Flavours
Gt 350 350 42 x 26 x 38 -32°C ± 3°C 0 4 2 15
Gt 450 450 54 x 26 x 38 -32°C ± 3°C 0 7 2 18
Gt 550 550 63 x 26 x 38 -32°C ± 3°C 2 9 21
