Transport refrigeration freezer

Silent Features:

  • Eutectic solutions jackets are used in inner tank .This type of freezer can keep Ice-Cream from melting for 15 hours without electricity.
  • Compact design with maximum coverage capacity.
  • We offer a wide range of Refrigerated Vehicles FB and CBC body , Ape, Dost, Tata trucks, Mahindra Di3200,the body of the Refrigerated vehicles are made with powder coated GI sheet with High density 31-38 Kg. / m Polurethane foam.
  • The flooring of the vehicle is made out of aluminum plate with striations for easy grip and ease for cleaning. Temperatures inside the vehicles are designed keeping in mind the products that are to be transported.
  • Cooling units are available with Single and three phase voltage.
  • The body of the vehicle can be customized and painted to suit the needs of the client.

Available in models

Model Vol.Lit Dimension W×L×H inc Temperature No.of Doors Consumption Units/24Hr

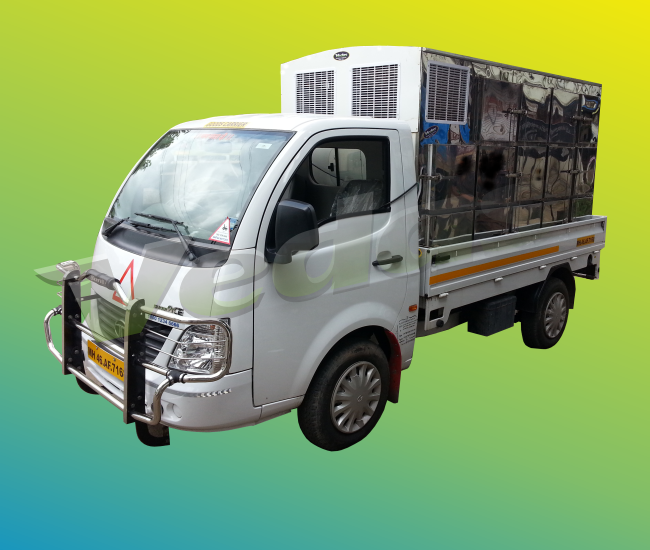

14 door (Tata super) 3200 101 x 57 x 56 -38°C ± 3°C 14 12
Single door (Tata Ace) 3540 83 x 53 x 66 -38°C ± 3°C 1 12

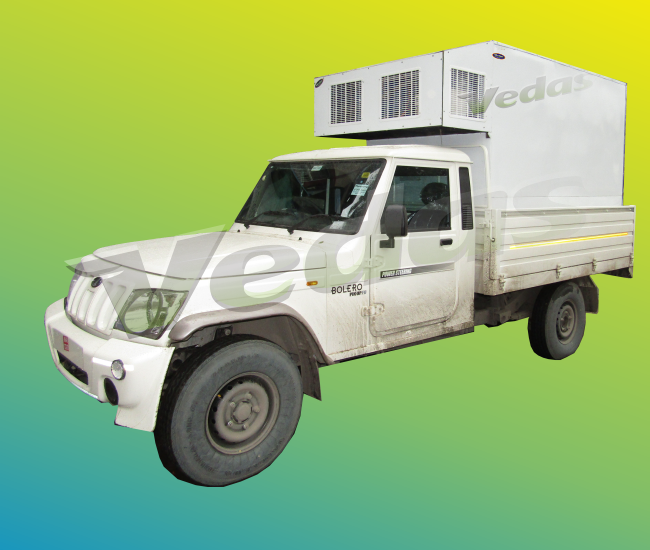

Four door (Bolero) 4700 94 x 59 x 72 -38°C ± 3°C 4 12
Single door (Bolero) 4700 94 x 59 x 72 -38°C ± 3°C 1 12
Four door (Tata 407) 5800 115 x 72 x 78 -38°C ± 3°C 4 18
Six door (Tata 407) 5800 100 x 68 x 72 -38°C ± 3°C 6 18
Single door (Tata 407) 9400 140 x 72 x 78 -38°C ± 3°C 1 18
Two door (Tata 407) 12200 166 x 83 x 72 -38°C ± 3°C 2 24
